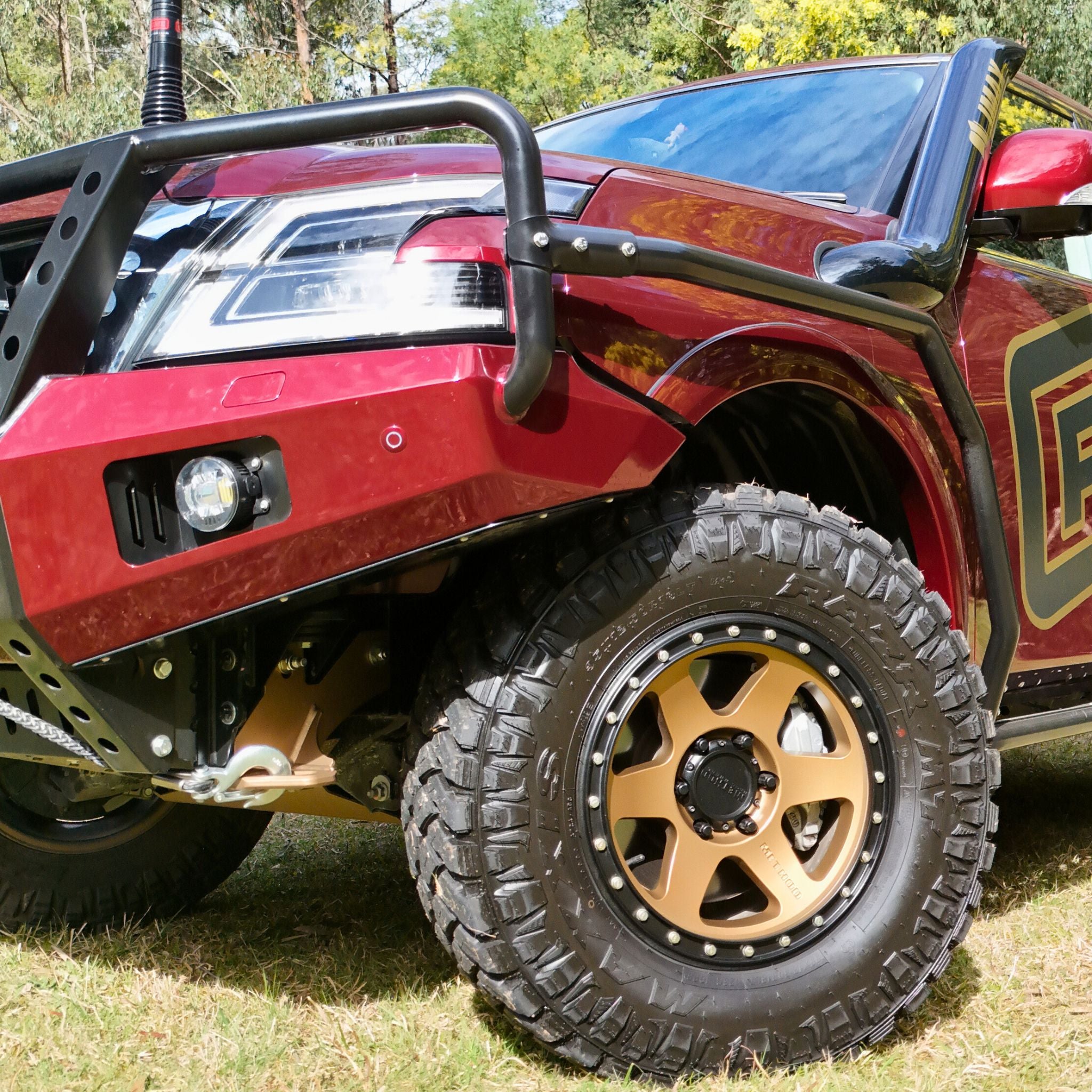

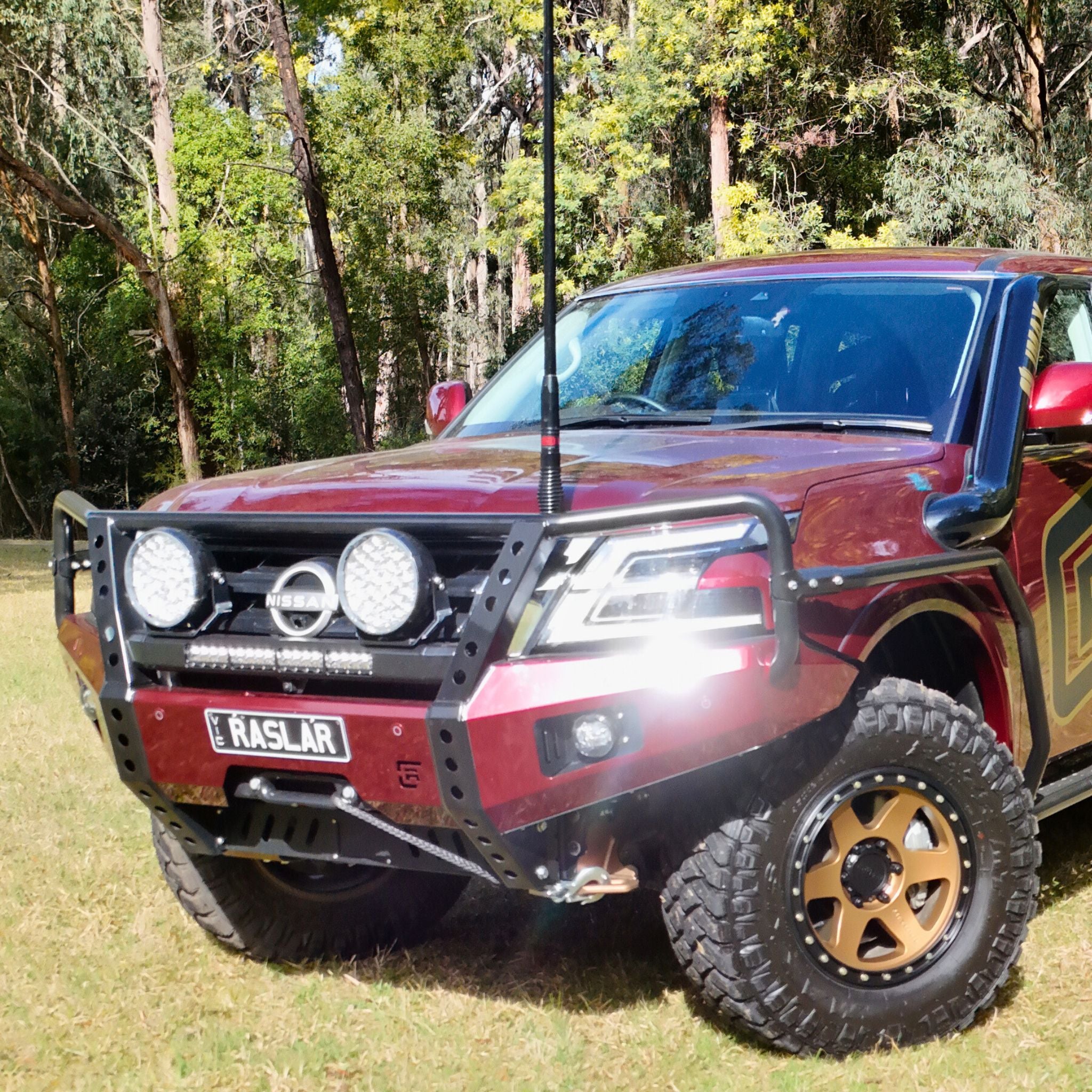

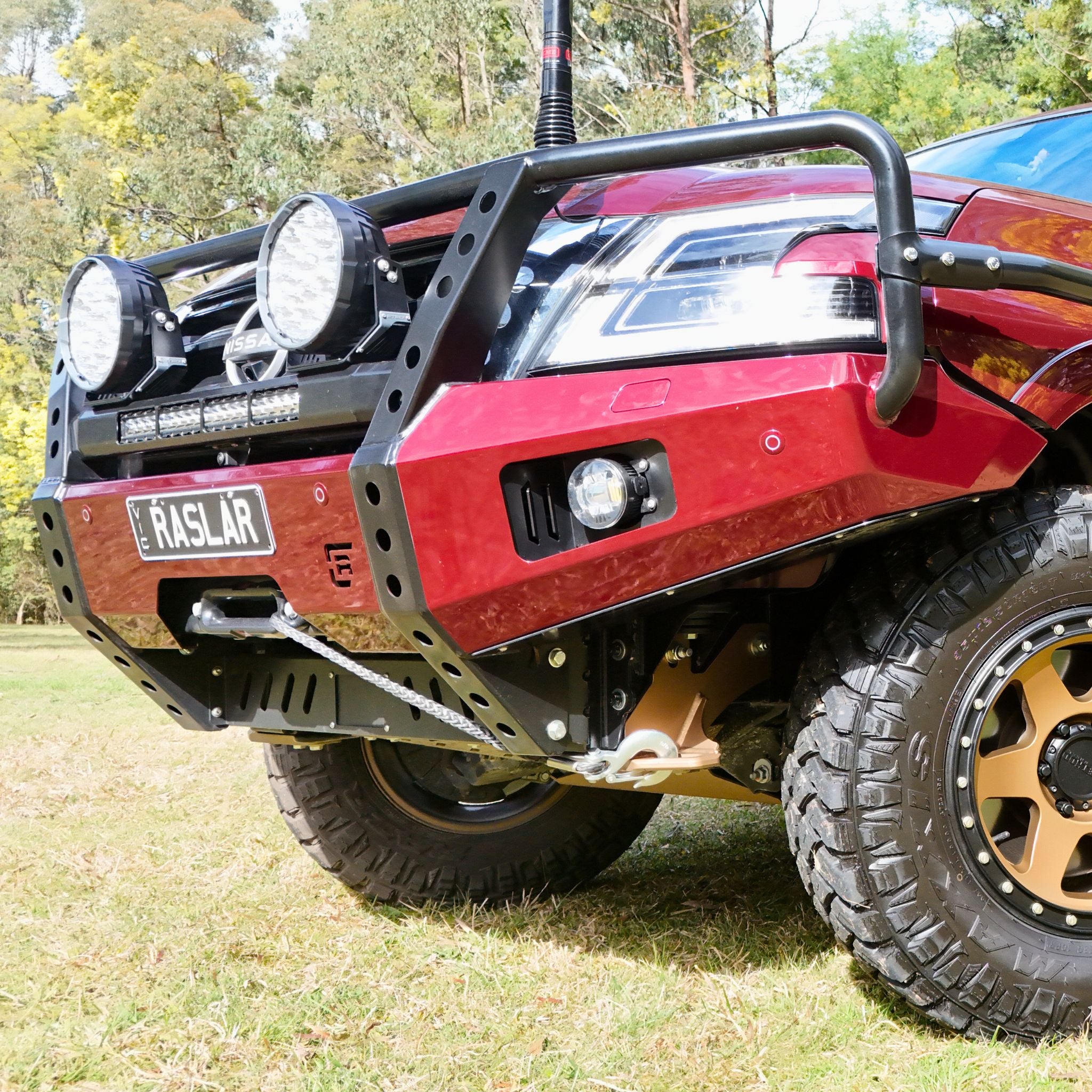

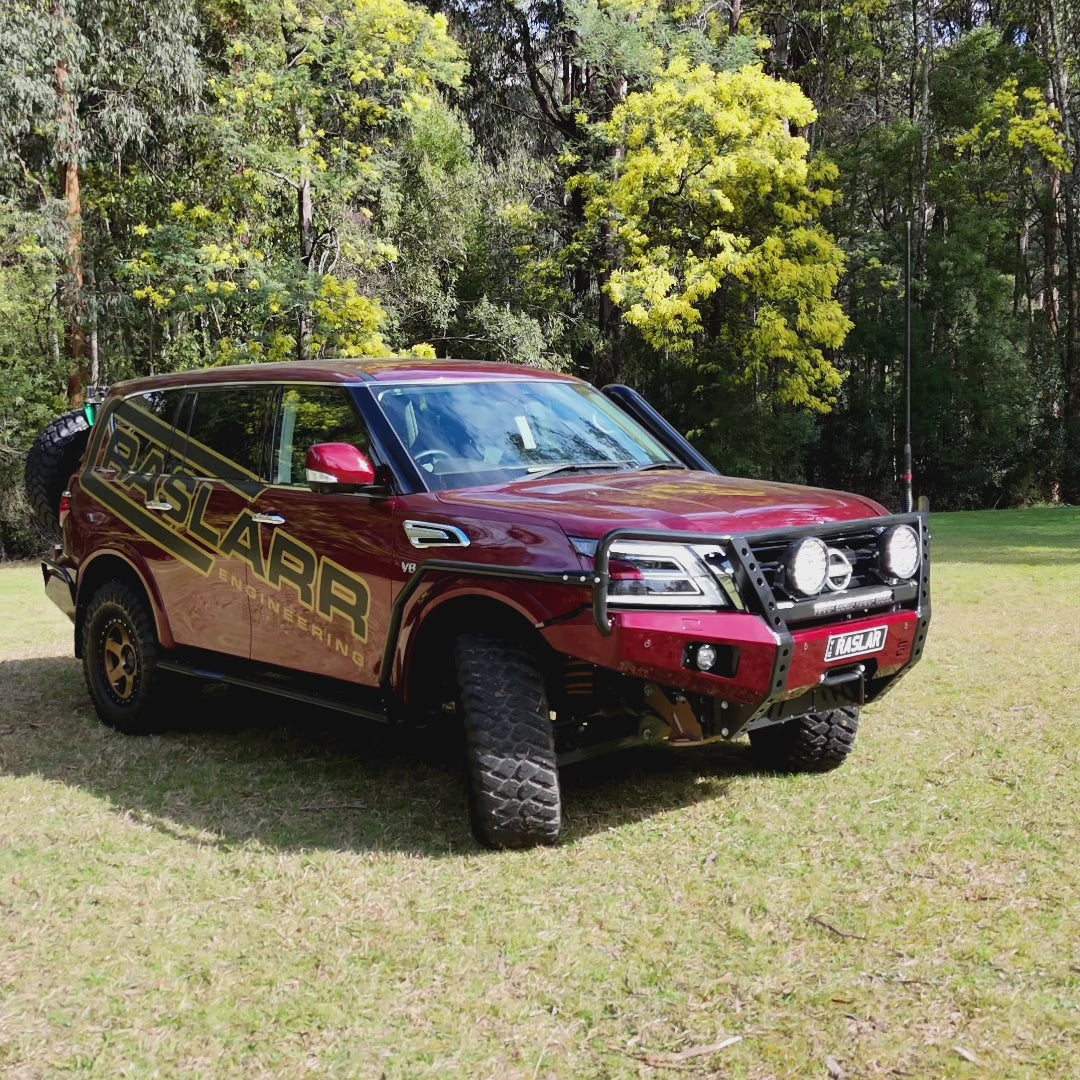

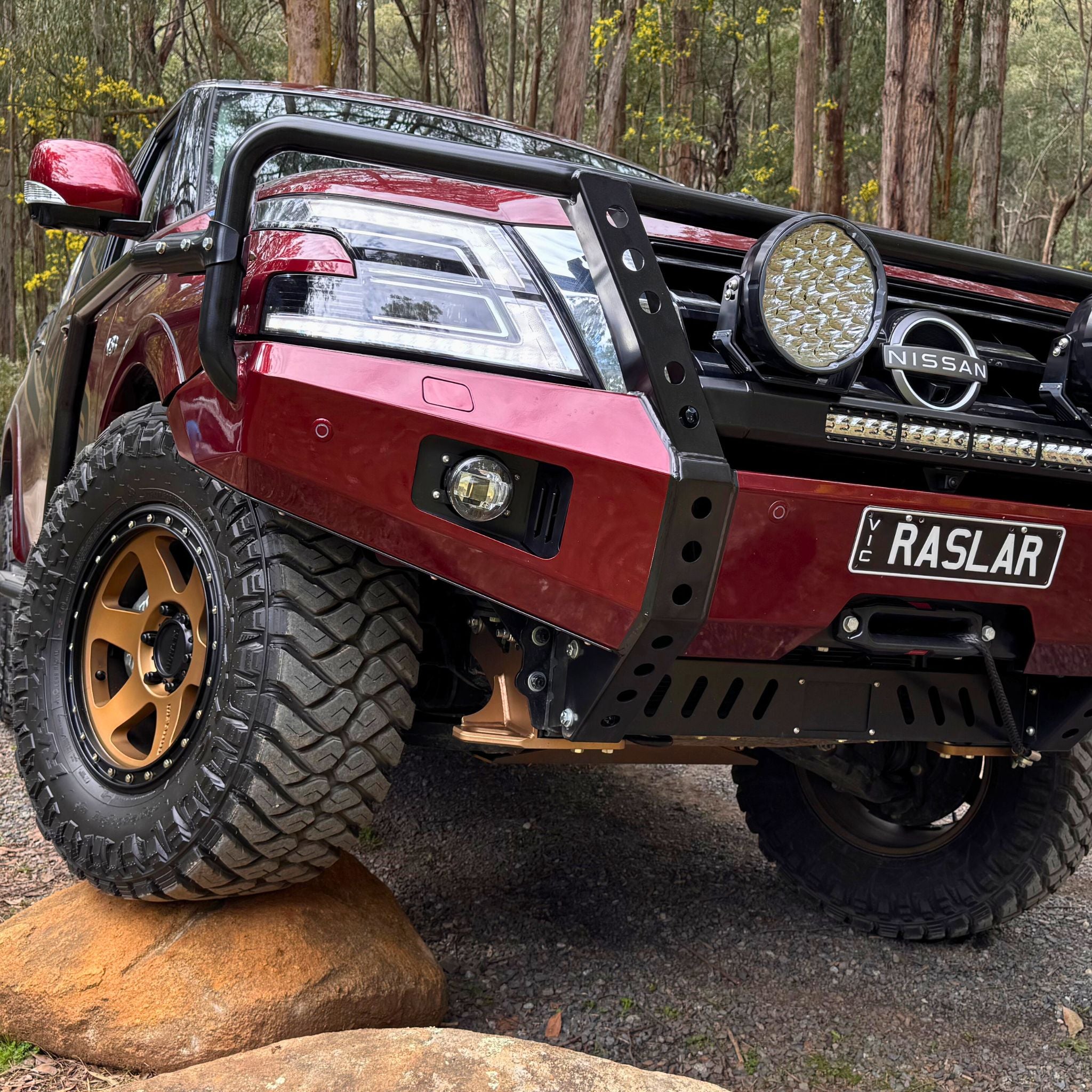

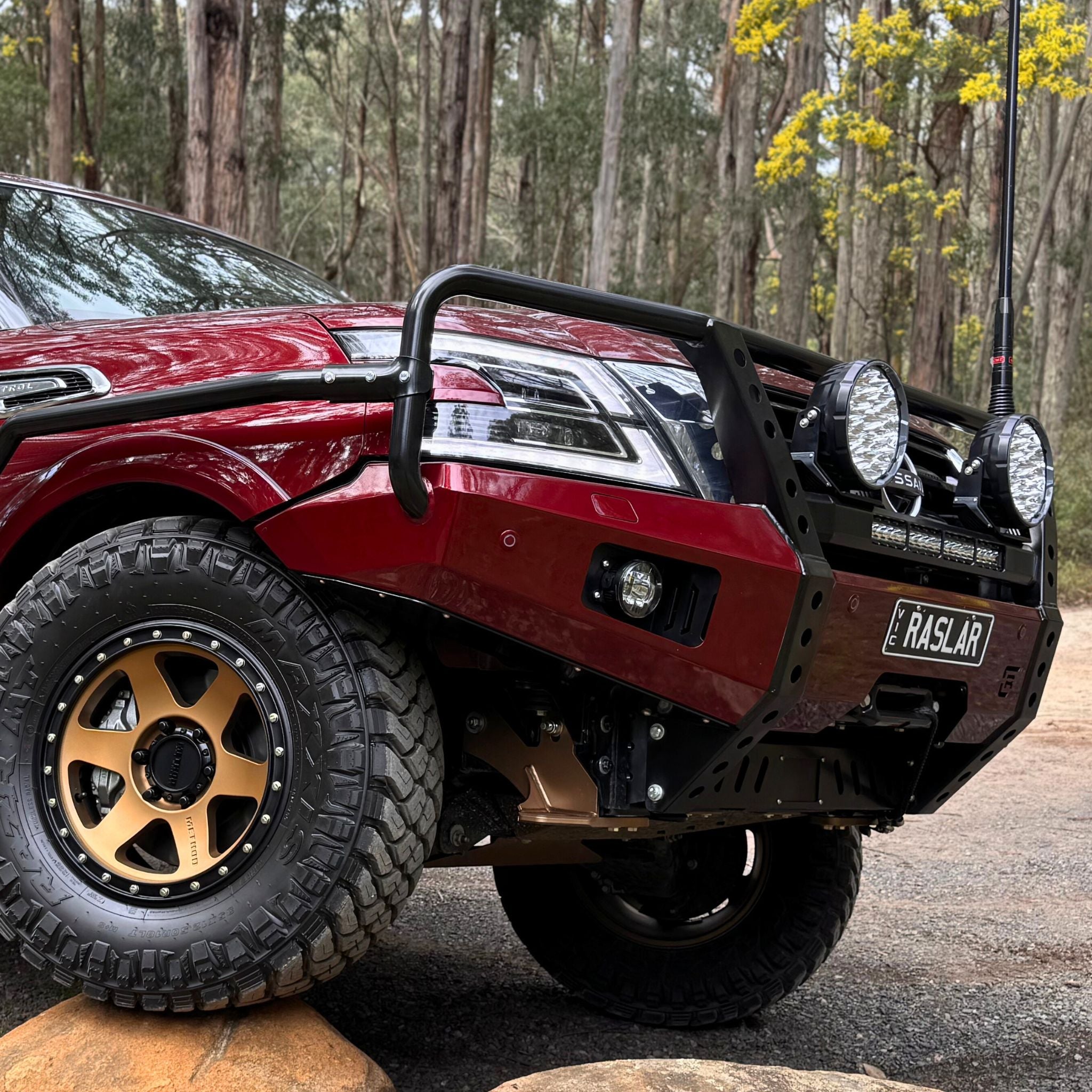

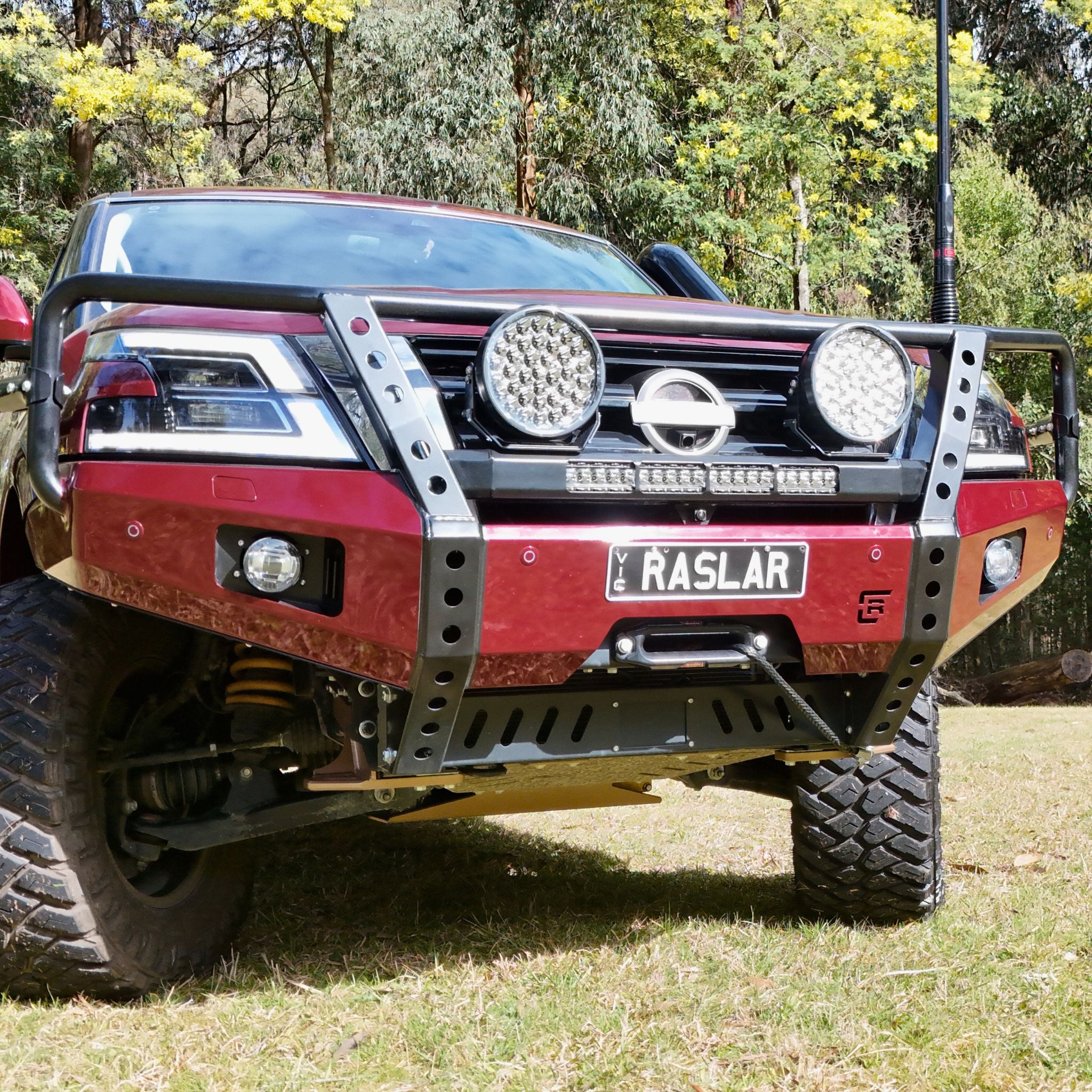

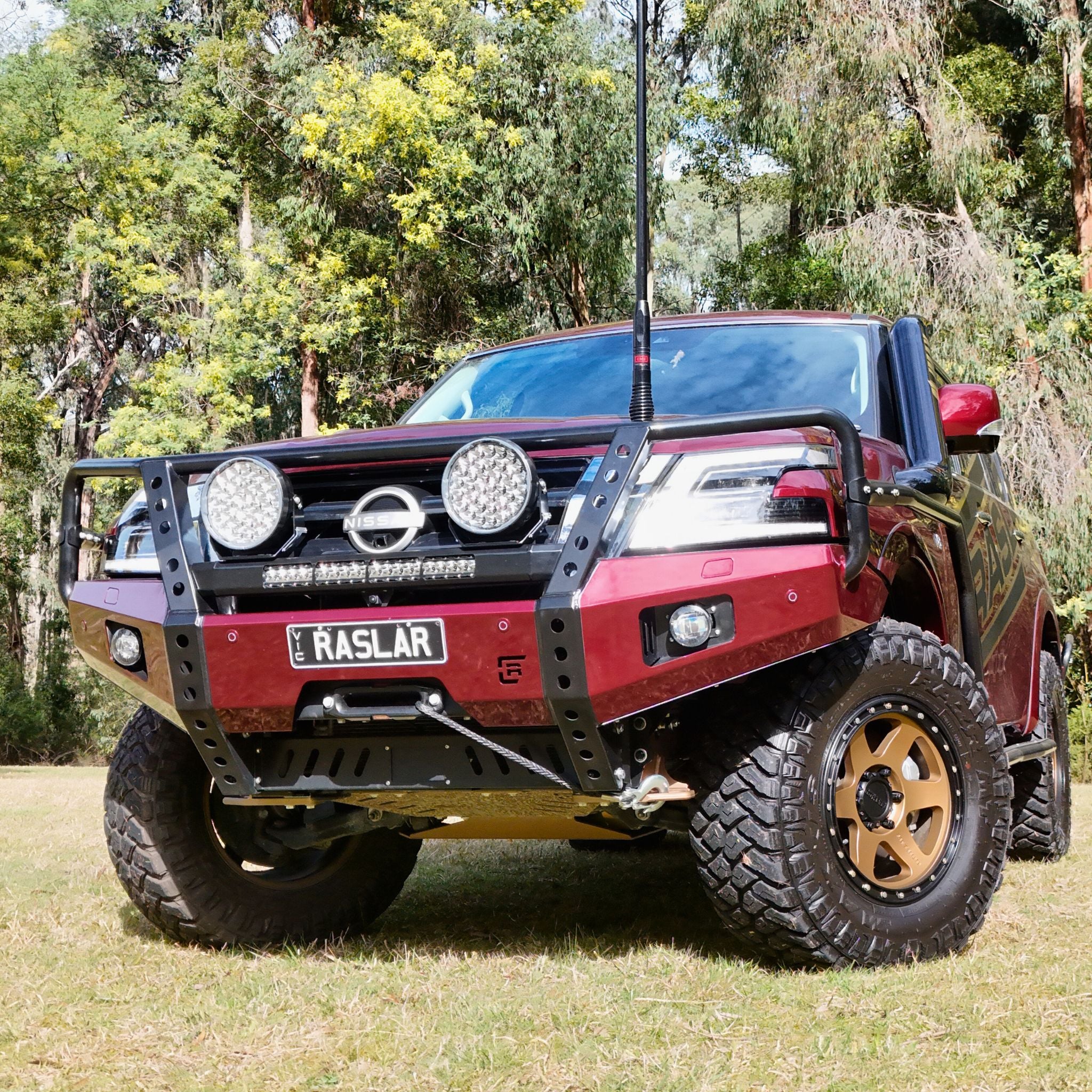

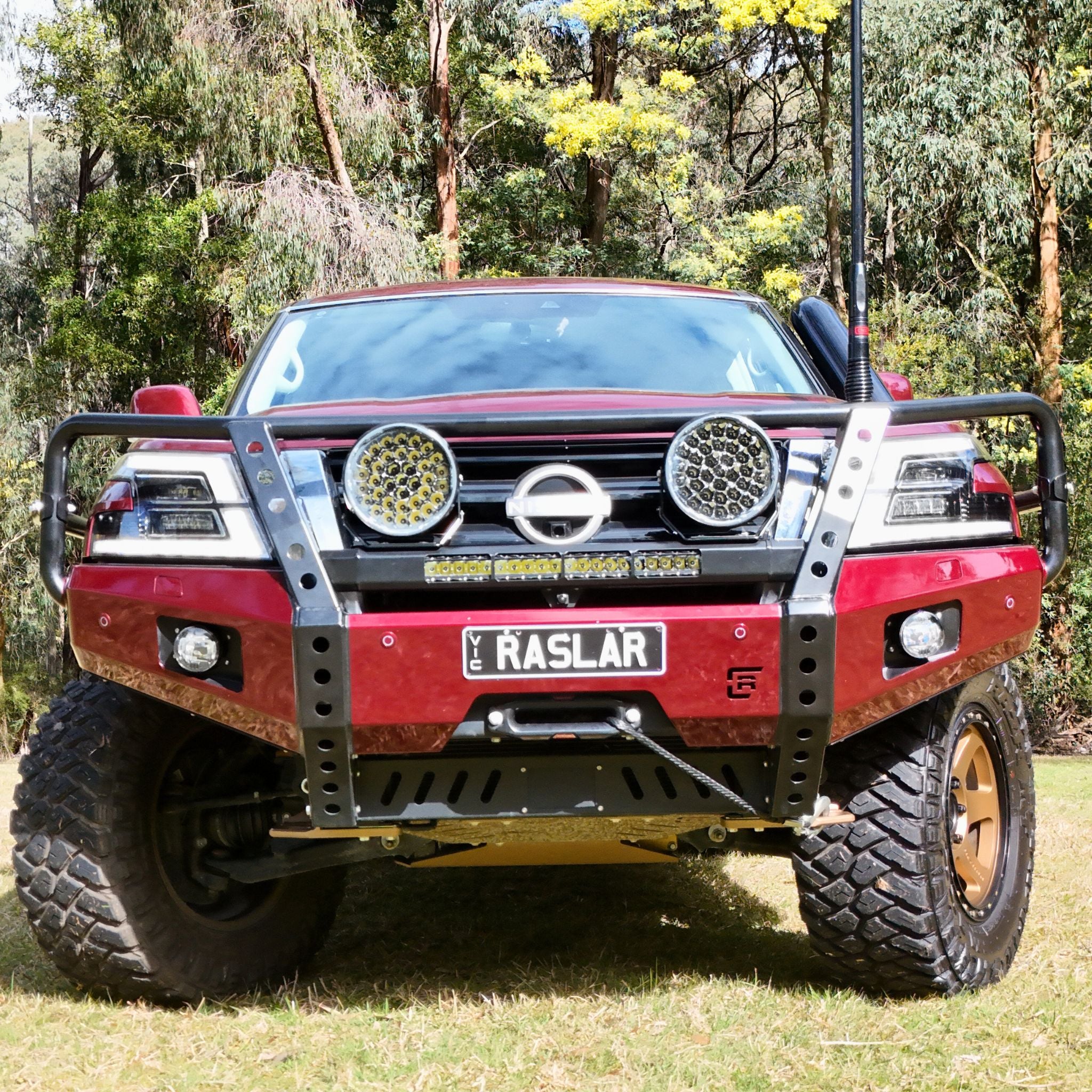

S5 Y62 Nissan Patrol Hooped (Dallas) Bull Bar

SKU: NIPATY62BB03
Due to the nature of our products, freight cost will be quoted to you with your order confirmation, after your products have been purchased.
$3,900.00
Model to fit
Light bar section
Pick up available from our Factory at 5 / 122 - 130 Beresford Rd, Lilydale, VIC 3104
All of our products are made to order. A confirmation email will be sent containing all information you need to know.

Product details

  • SKU NIPATY62BB03

Share this product via Facebook

Description
  • Suits Series 5, all models; Ti, Ti-L & Warriors
    • Warriors will require trimming of the bash plates, flares clip off.
    • These will not fit S1-4 Models, these are still in the design process.
  • These are a 1-piece design compared to our low line variant (Winter Bull Bar), which are 3-pieces
  • ADR Compliant
  • Light bar section is bolt-on with the ability to remove if not running or to run our 3 & 4 heavy duty light options (5mm)
  • Comes with Raslarr soft shackle Recovery points (as of May 2024)
  • Capable of carrying low mount winches with a straight fairlead (not offset fairlead).
  • Only fit slimline numbers plates, standard ones can be run with a flip up number plate bracket (not Raslarr)
  • Plastic radar cover.
  • Optional Stedi 21.5″ light bar & fog lights.
    • Factory fog lights will not fit back into the bull bar.
  • Will fit any Stedi round driving lights (and most other brands).
  • 2 aerial tabs.
  • 50mm OD Tube for the headlight hoops, with 3.2mm wall thickness.
  • The main section is constructed from a combination of 6mm and 3mm mild steel.
  • The wings are constructed from 3mm mild steel.
  • Sensors and washer jets work with new bull bar fitted.
  • Comes standard sandblasted, zinc primed & satin black powder coated
  • Comes with all new hardware to mount your product.
  • Colour coding options are available
  • Manufactured all in-house at our factories in Lilydale VIC 3140

WEIGHT OF PRODUCT: (Doesn’t include fogs or light bar)

Complete bar: 64kgs
Light bar bracket: 4kgs
(standard version, not heavy duty)
Recovery Points: 10kgs
Total Weight of product (with recovery points): 78kgs
Removal of misc parts when fitting: 23kgs
Total weight added to vehicle: 55kgs

SHIPPING COSTS

Shipping is calculated at the checkout. We only ship within Australia (no international shipping).
Shipping to a business with a forklift is preferred, however these can be shipped to residential addresses (via tailgate truck) for an additional $210 on top of the quoted price.
If you are unhappy with the shipping price quoted, please contact us and we can look at alternative options.

COLOUR CODING

As standard when painting the bull bars, the centre divider remains powdered black whilst the rest of the bar is colour coded to suit your vehicle. (White vehicle in images).
We can colour code the bar work to your vehicle, however we require your exact colour code i.e. KAD, QAC etc.
Painting of bull bar: $600
>>PEARL<< is an additional $140.

FITTING COSTS

The total time Raslarr takes to fit a Y62 Patrol Bull Bar is 8 hours.
Cost: $1,080.00
This includes the wiring of your Stedi Type-A fog lights.
Wiring of Stedi light bars is an additional $250.
Wiring or winches is an additional $405.
